WinFACT-Driver S7-200/300/400
The driver allows the communication between the block oriented simulation system BORIS and a Siemens PLC. It can be used
 |
for the Micro-PLC S7-200 in combination with a PC/PPI-cable and |
|
for the PLC series S7-300/400 via MPI and ISO via TCP/IP. |
Based on this driver I/O-values out of any data block (or timer, flag) can be read resp. be specified. At present the following data types are available:
| BYTE | INT | WORD | DINT | DWORD |
| BCD WORD | BCD DWORD | S/ REAL | S5 REAL | S5TIME |
| TIME | DATE | TIME_OF_DAY |

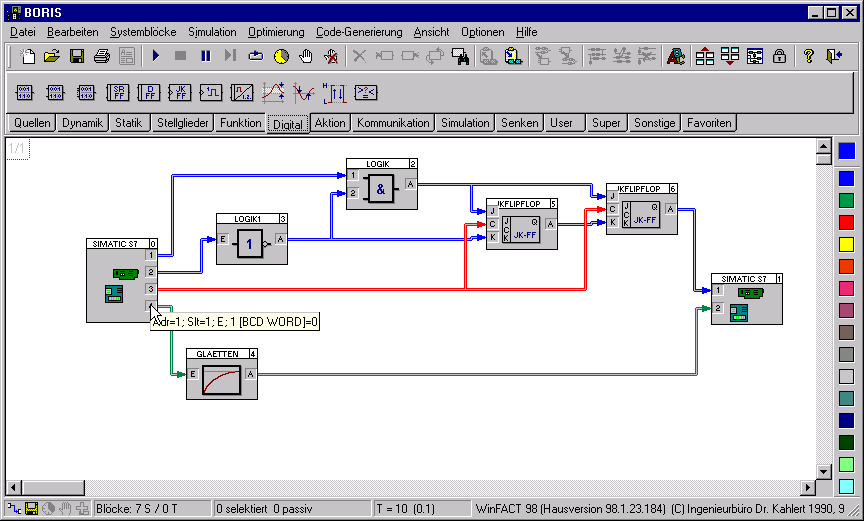

In addition to that it is possible to exchange information about the core image of the digital/analog in- and outputs and the state of counters, timers and flags of the automation unit. The in- and outputs of the hardware are configured via convenient dialogs directly within the BORIS development environment.
The S7-driver does not require any additional software.
|
|
|
| Prices: | ||
| Single user licence Industry: | EUR | 510,00 |
| Education licence: | EUR | 510,00 |
Please refer to our price lists for current prices of all products!
