Automatic Control Compact Models

The Automatic Control Compact Models are a well-priced alternative or add-on to our automatic control program system WinFACT. Each model combines all control, visualization and analysis functions within one uniform compact user interface. All models are ready-to-use, i. e. they are ready for use without previous configuration, parameterization or the like. An technology resp. block diagram illustrates the process. All main variables and parameters can easily be adjusted via sliders and their effects can directly be checked during simulation. Bar graphs, numerical displays as well as time response diagrams present the results very clearly. The integrated online help provides background information on the corresponding control loop if necessary.

Each Automatic Control Compact Model consists of two partial models:

	the underlying controlled system

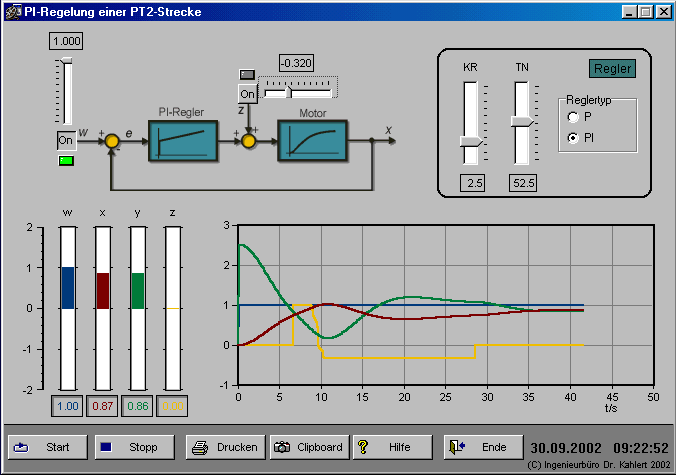

	the underlying closed loop

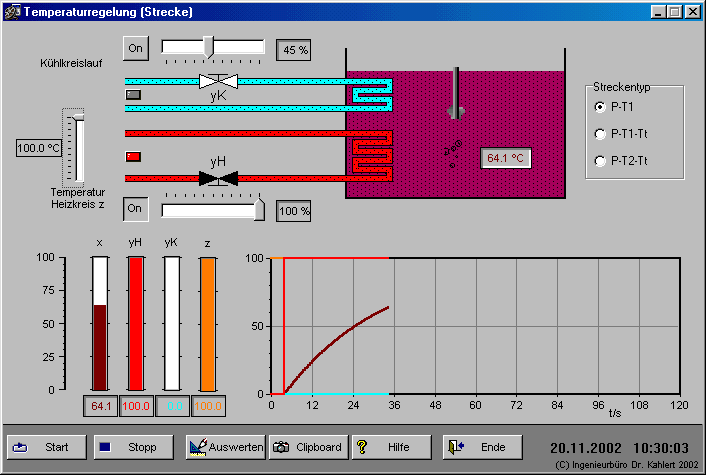

The first partial model enables the analysis of the control loop, e. g. for the experimental determination of the system parameters. For that purpose the manipulated variable can be preset via a slider and activated via a button. The second partial model enables the analysis of the closed loop using different controller types and parameters.

Important: All models are stand-alone usable, i. e. no WinFACT license is required!

At present the following compact models are available (the user interfaces are designed with our Flexible Animation Builder):

Graphic preview (plant/closed loop)		Short description
		Pressure control

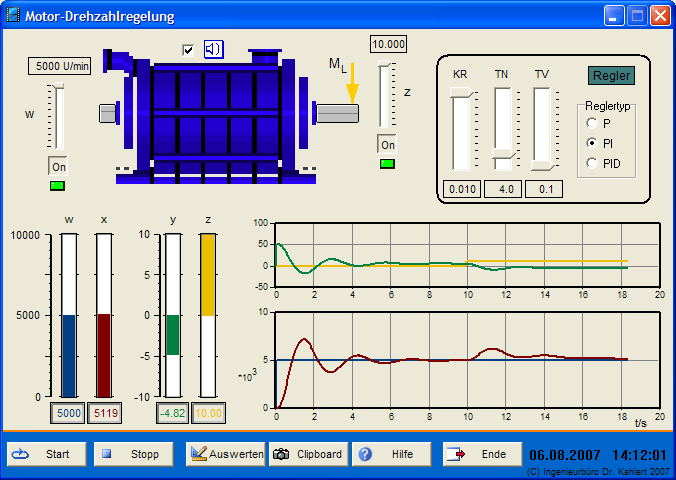

		Motor speed control

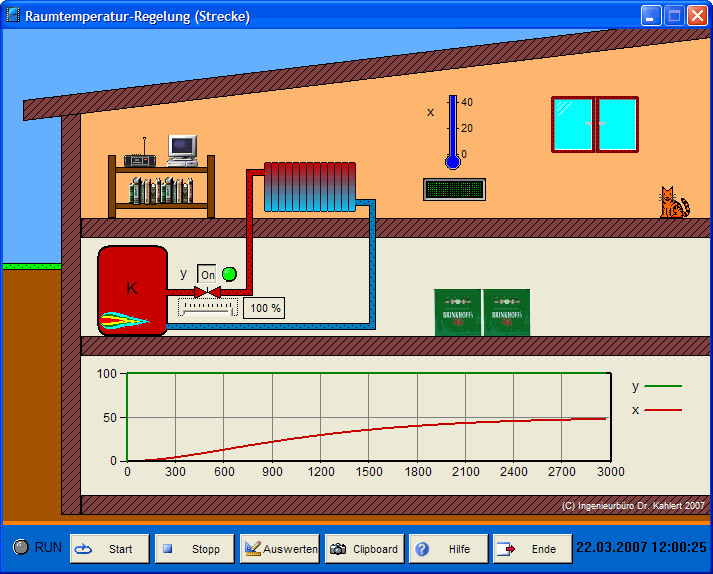

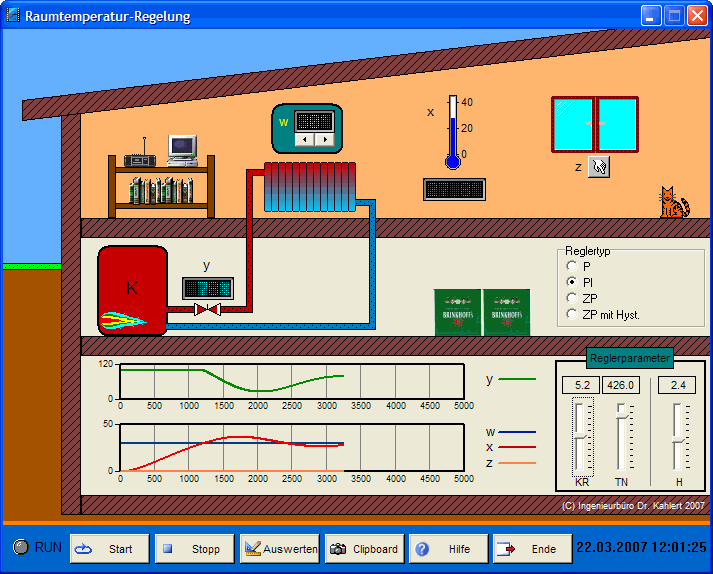

		Room temperature control

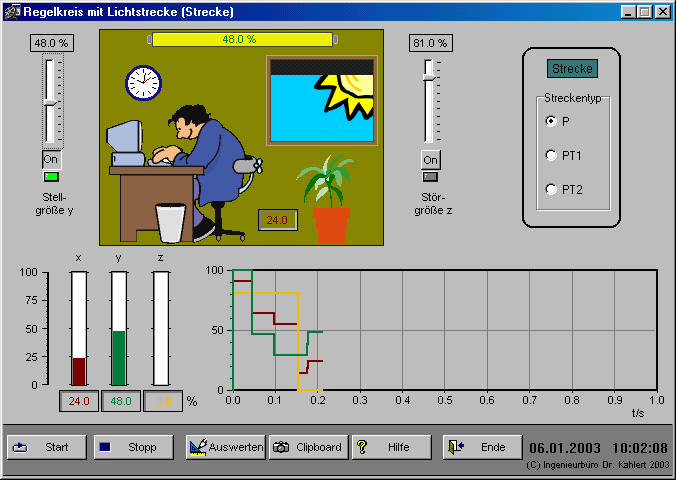

		Light plant control

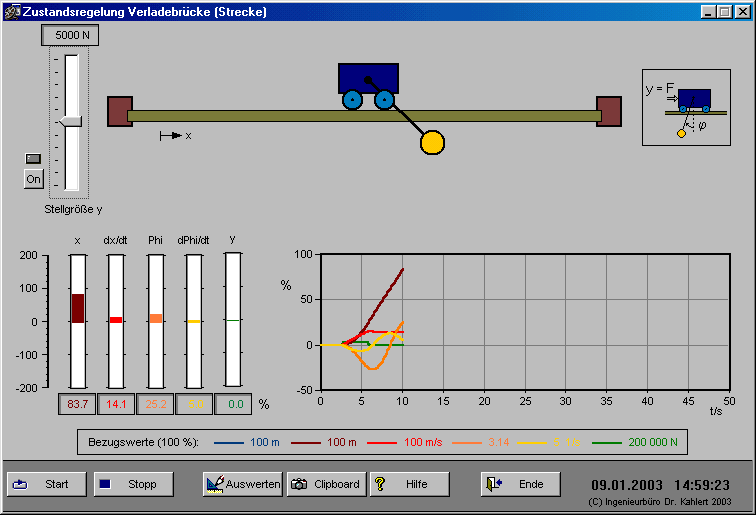

		Loading crane state control

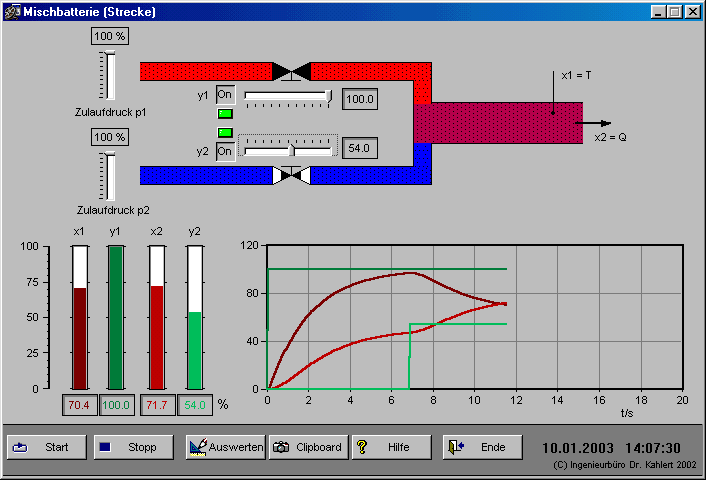

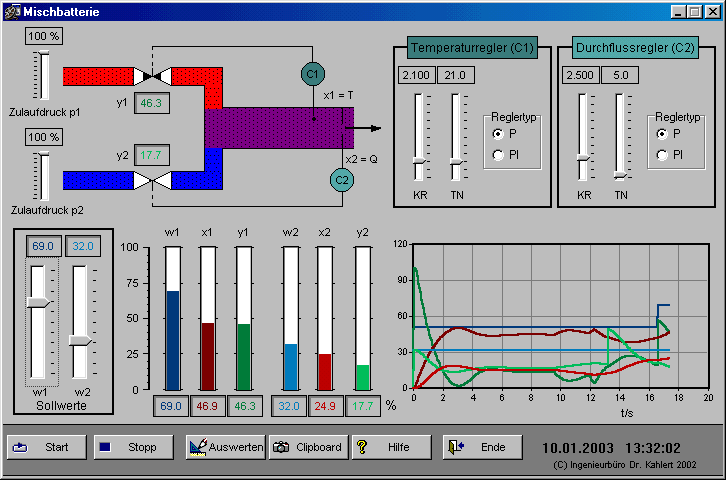

		Mixing faucet (multi variable control)

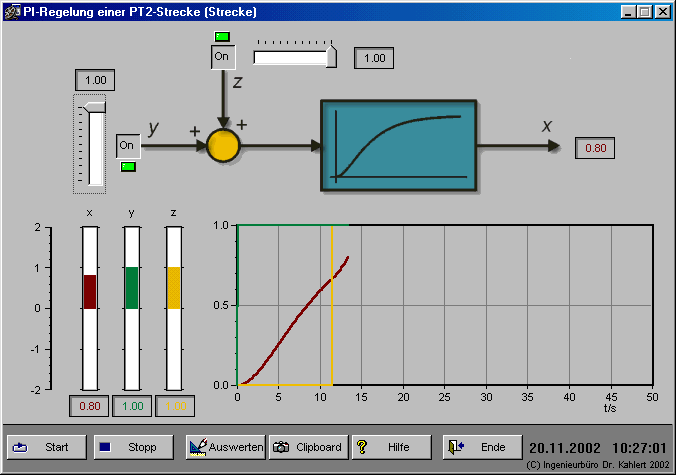

		Control of a PT₂ plant

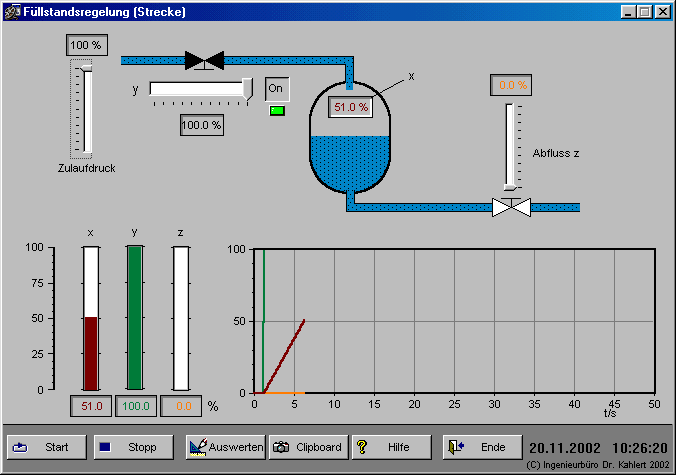

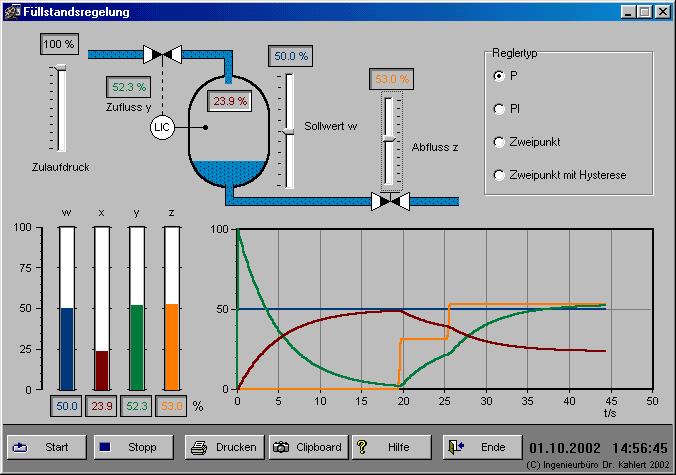

		Liquid level control

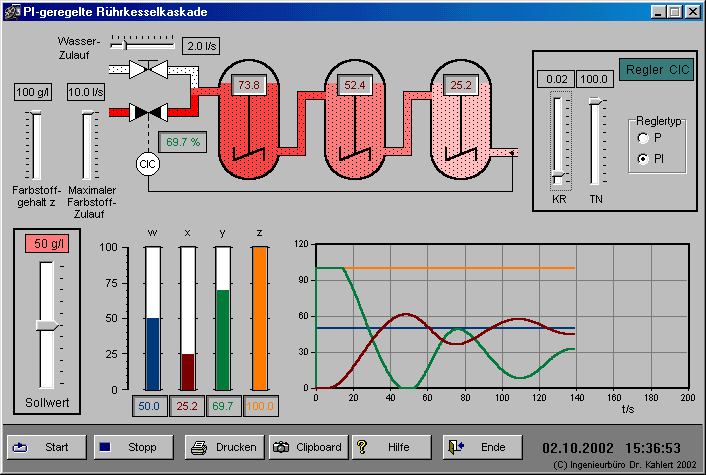

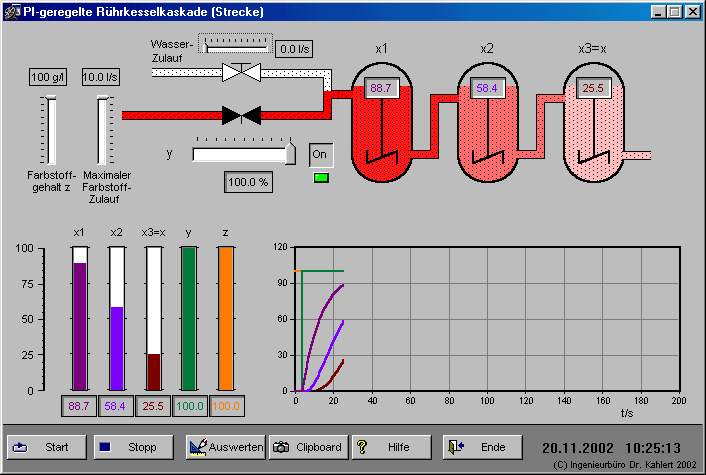

		Control of a stirring tank cascade

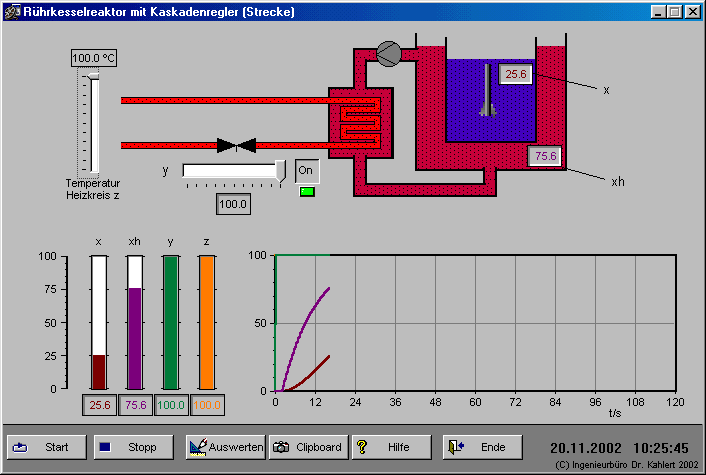

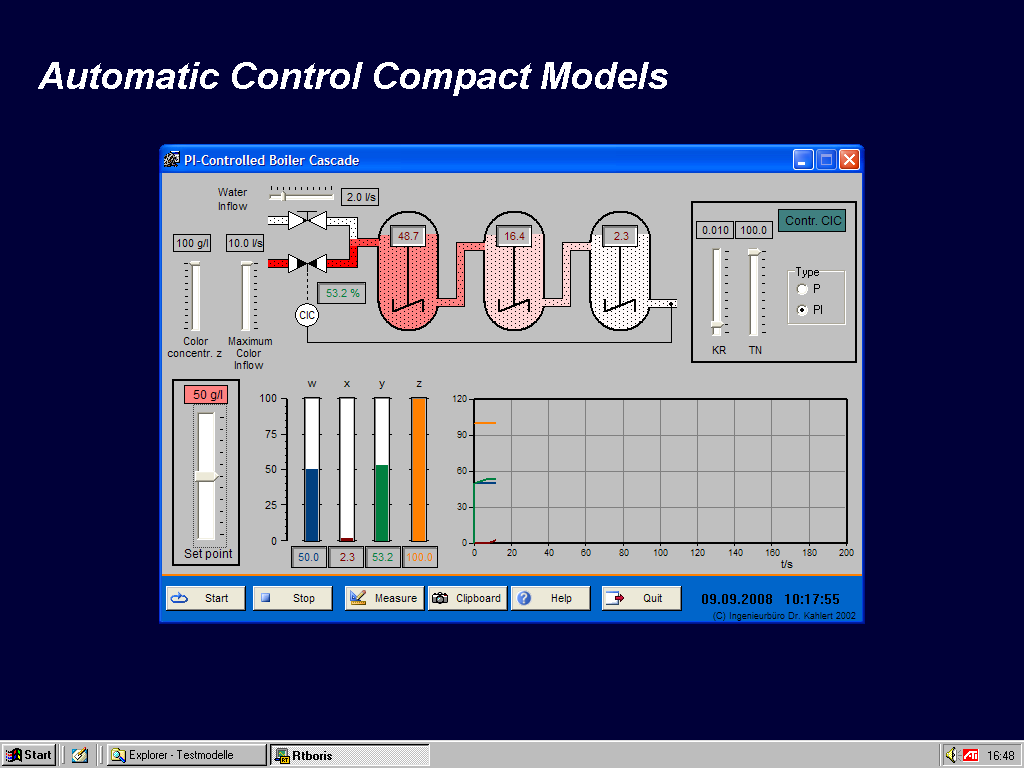

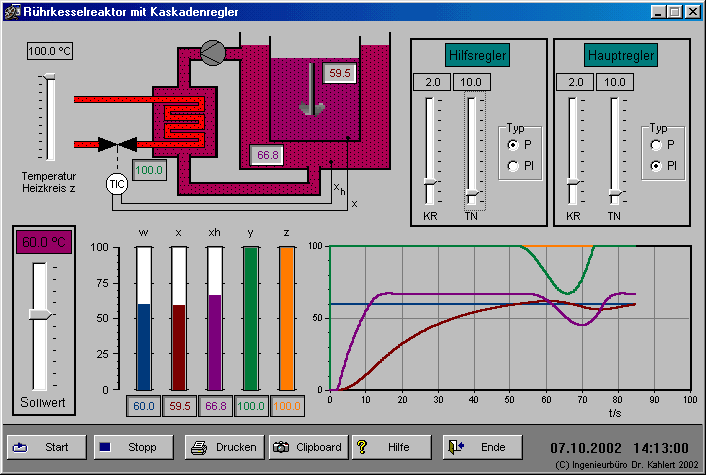

		Stirring tank reactor with cascade controller

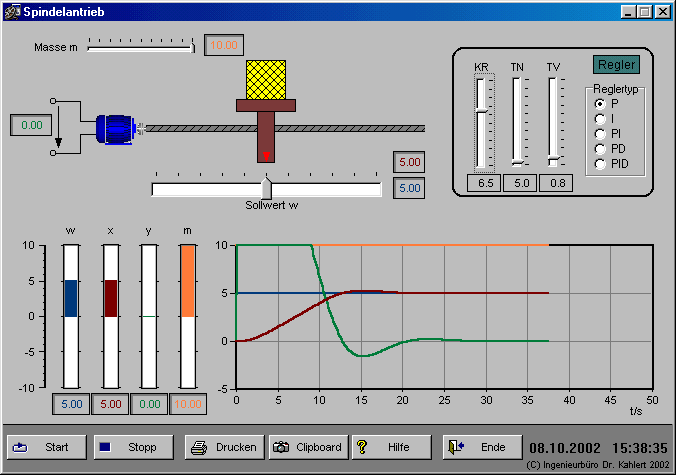

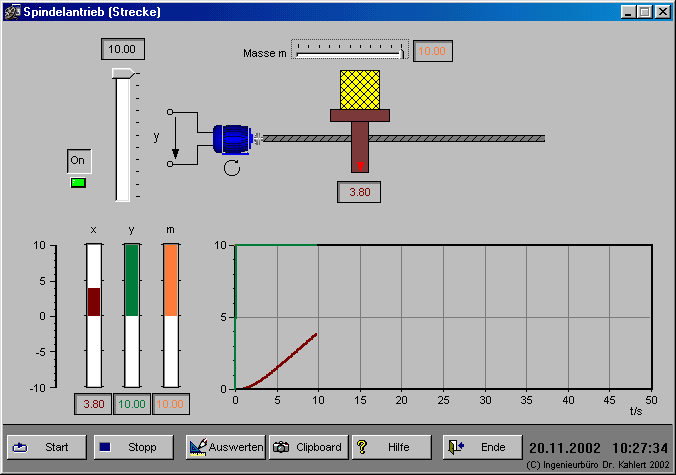

		Spindle drive (plant without compensation)

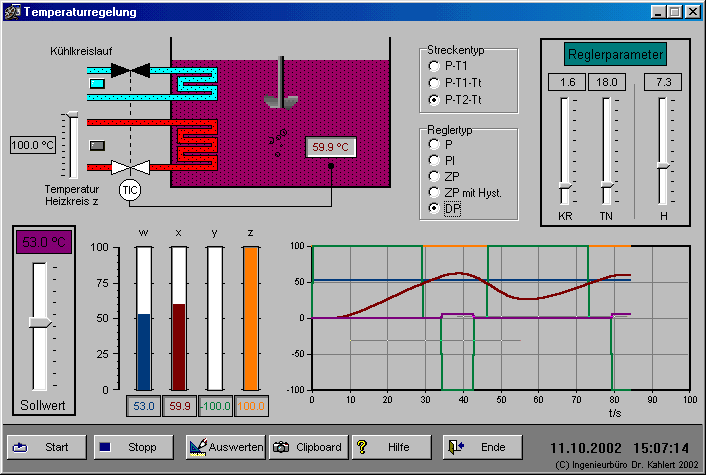

		Temperature control with PI-/two position-/three position controller

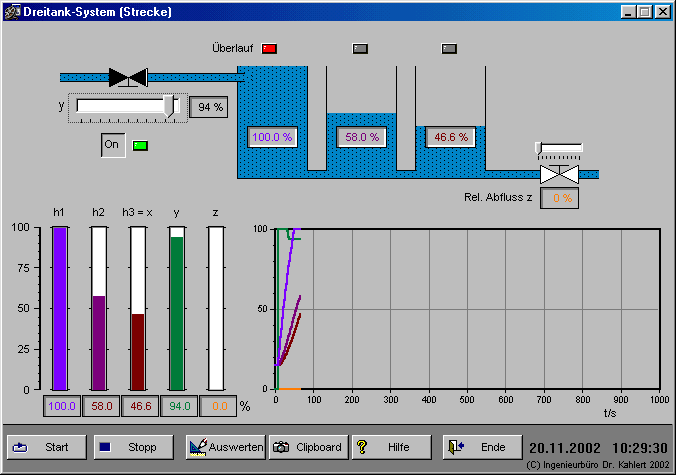

		Three tank system

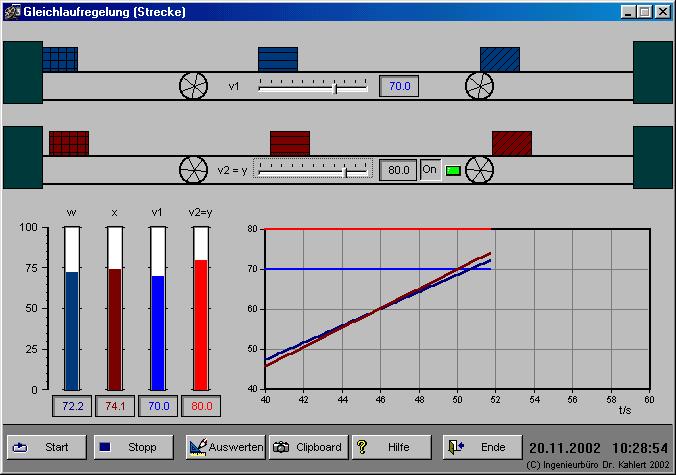

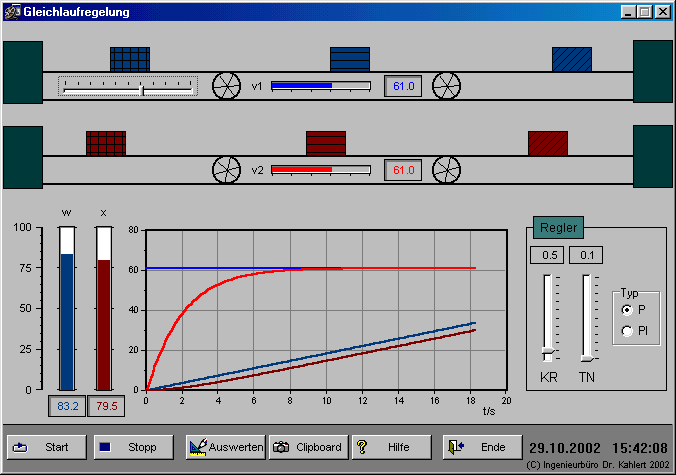

		Synchronous run control

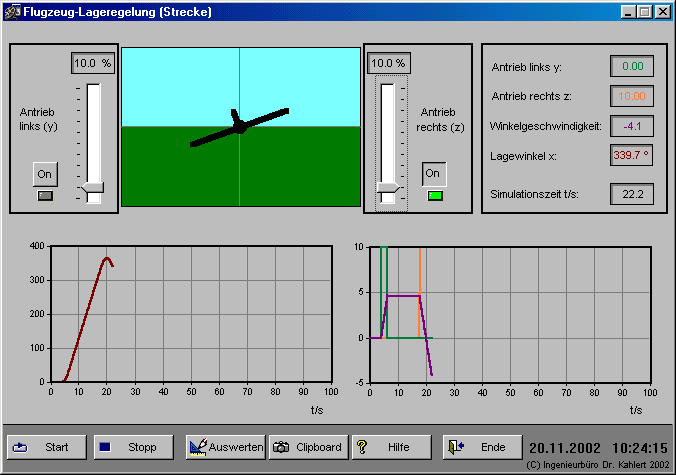

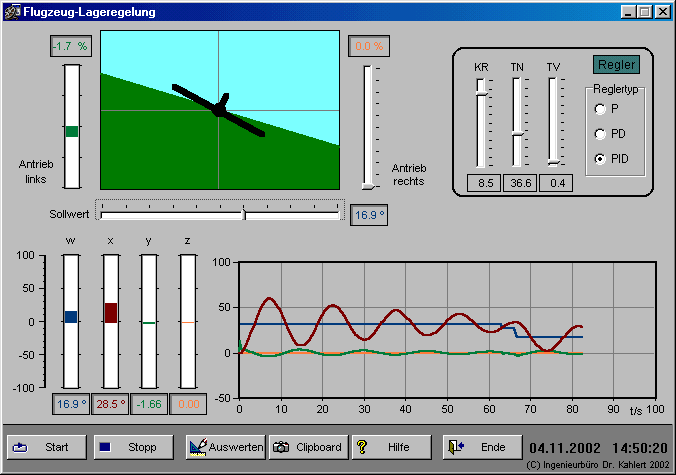

		Aircraft attitude control

A lot of further models as well as comprehensive experiment instructions are in preperation and will soon be available. Of course, we also like to build models based on your own ideas!

Download demo version

Note: After the installation of the compact models you invoke them via the Windows start menu (Start | program files | Automatic control models |...), not by loading the corresponding BSY-file in BORIS!

Prices:
Training license:	EUR	EUR
Number of users:	1	10
Single Compact Model:	49,00	195,00
Set of all Compact Models:	295,00	1.150,00

Please refer to our price lists for the current prices of all products!

Our PLC simulation models are a well-priced alternative to real experiment setups.
