Driver Siemens S7-200/300/400/1200

Scope of performance

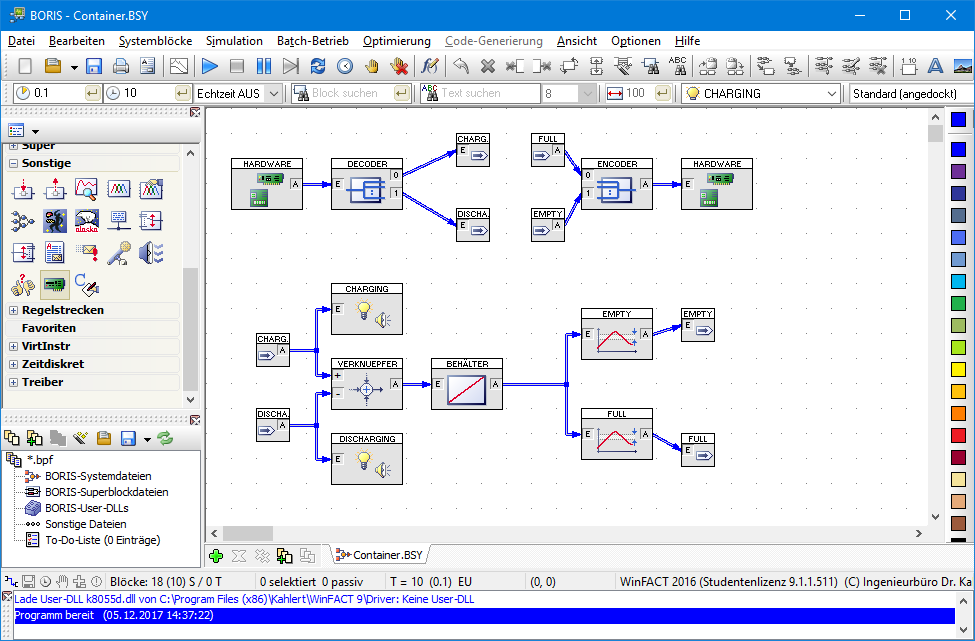

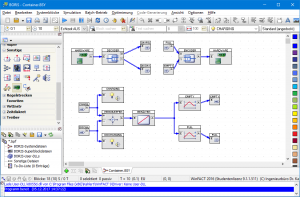

The BORIS driver for Siemens S7-200/300/400/1200 allows the communication between the block oriented simulation system BORIS and a Siemens PLC. It can be used

  • for the Micro-PLC S7-200 in combination with a PC/PPI-cable and
  • for the PLC series S7-300/400/1200 via MPI and ISO via TCP/IP.

Based on this driver I/O-values out of any data block (or timer, flag) can be read resp. be specified. At present the following data types are available:

BYTE INT WORD DINT DWORD
BCD WORD BCD DWORD S/ REAL S5 REAL S5TIME
TIME DATE TIME_OF_DAY

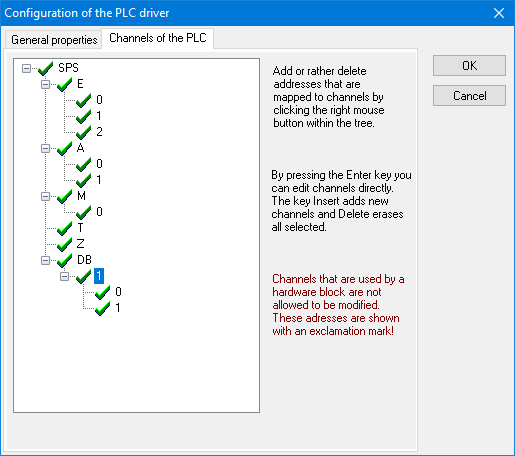

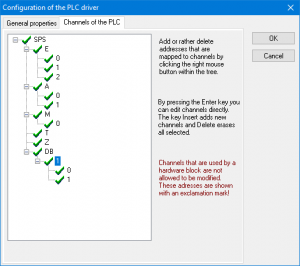

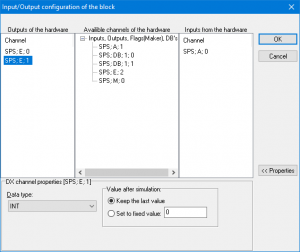

In addition to that it is possible to exchange information about the core image of the digital/analog in- and outputs and the state of counters, timers and flags of the automation unit. The in- and outputs of the hardware are configured via convenient dialogs directly within the BORIS development environment.

The S7-driver does not require any additional software.

Downloads

Demo version S7-driver for BORIS (German)

Documentations and product information

Product information “WinFACT driver S7-200/300/400/1200” (German)

Further links

MODBUS driver for S7 (German)

Prices

Single user licence Industry:EUR390,00
Education licence:EUR390,00

Please refer to our price lists for current prices of all products!
